Finex - Bag Dumping Station

`

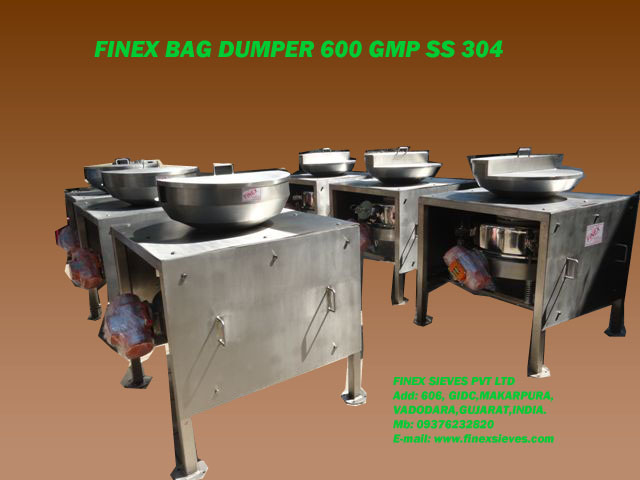

Finex India presents the Big Bag Dumping station:

Bag dumping station is a complete solution to screening system which makes feeding operation quite easy compared to other conventional ones & combines several functions into one complete system. Bag dumping station provides your business with more efficient, more economical and safer work environment.

The Circular Range of Vibrating screening machines are driven by two vibrator motors fitted on opposite sides from 0.25 HP to 3 HP.

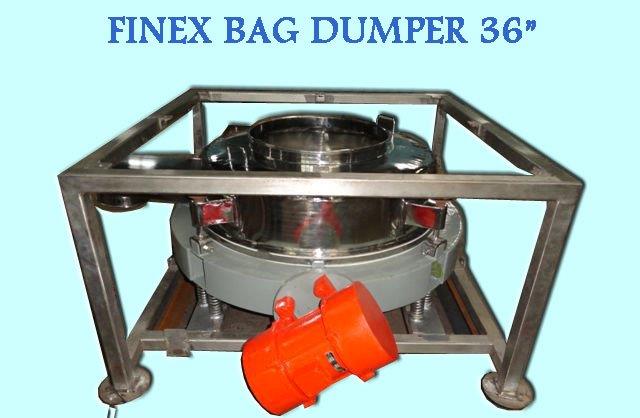

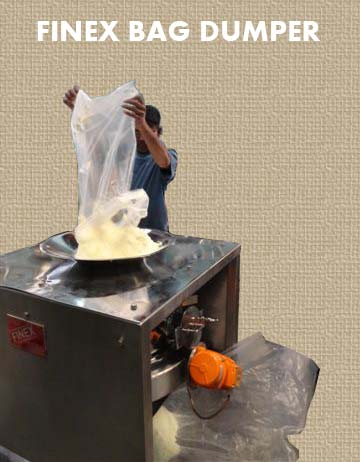

This is a vibrating circular inline screening machine in which material is fed from the top in a non vibrating hopper plate .Bags with powders are dumped into the machine .Screened powders are discharged from below which is inline vertically downwards.

MACHINE SIZES
  • Model no FSPL- BBS-30
  • Model no FSPL- BBS-36
  • Model no FSPL- BBS-48
  • Model no FSPL- BBS-60
Applications
  • Solid-solid separations from one to three screens powders grading
  • Screens offered from 2 mesh to 200mesh for powders
  • Solid liquid separations dewatering from 10 mesh to 300 mesh.
  • Powder separations to handle from 500 to 5000kgs/hr
  • Applications sand, ceramics slurry, sugar, PTFE, Menthol, foods, chemicals, removal of lumps from chemicals

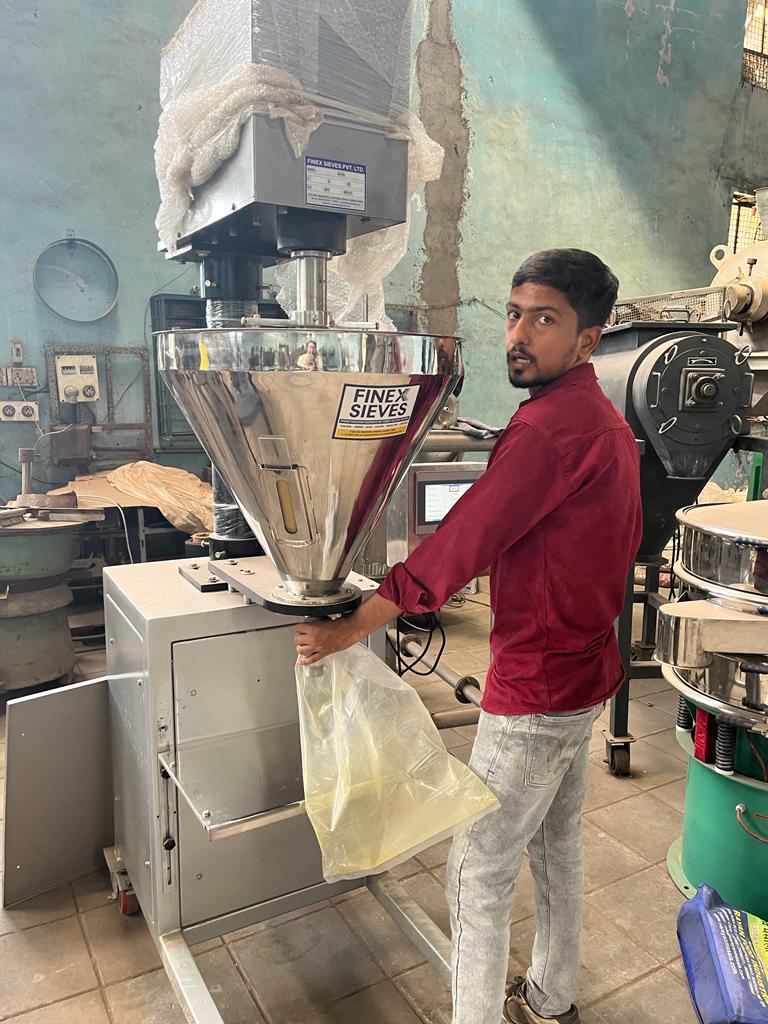

  • The screened powders can be fed to the packing machine.
  • Specially used for removal of impurities from powders before packing machines.
Can be offered in Material of Construction of Stainless Steel SS 304 / 304L / 316 / 316L or Carbon Steel

The basic assembly of bag dumping station consists of the following:

  • Vibrating Screen with two vibrating motors providing higher screening efficiency
  • Unloading unit to unload the bags
  • Dust Collection System with filter cartridges to filter and collect the fine dust generated during bag unloading
  • Blower
  • Solenoid Valve and Air tank providing pulsed air to clean the filter cartridges
  • Ultrasonic screen deblinding system (optional) can be fitted on the Vibro screen to deblind the screen providing better and consistent screening efficiency
ADVANTAGES:
  • Protects the health of workers
  • Improves housekeeping
  • Reduces labor costs & material losses
  • Reduces potential for dust explosions
  • Reduces cycle-time
  • Fits well into existing dust collection systems
